Number Plate Recognition ≥100dB RPL-YY01 Bulk Buy 260mm*260mm (P4.75 Top Red and Bottom Green LED Two-line Display) Realpark
Product details of the number plate recognition
Quick Detail
The production of Realpark number plate recognition is strictly controlled and inspected before going into the next stage. The quality experts test this product on different parameters, so as to maintain the quality. Realpark's number plate recognition is widely used in multiple industries and fields. The product is sold in the global market and has broad market potential.
Product Introduction
With a focus on product quality, Realpark strives for quality excellence in the production of number plate recognition.
Product Parameter
|
Part Number |
RPL-YY01 |
|
License Plate Recognition Camera |
Type A/ Type B/ Type C Option |
|
lmage Output |
300W/400W pixel JPEG Option |
|
Minimum Illumination |
0.01Lux |
|
Aperture |
Fixed aperture focal length:6mm |
|
Wide Dynamic Range |
≥100dB |
|
Storage Port |
Supports SD2.0 Micro SD (TF) Cards with a maximum capacity of 128GB |
|
LED Screen Size |
260mm*260mm (P4.75 Top Red and Bottom Green LED Two-line Display) |
|
Resolution |
Single LED module 64*32 Lattice |
|
LED Energy |
Saving Supplement Light |
|
Class of Protection |
IP42, certain dust-proof and waterproof function |
|
Operating Temperature |
-10℃ ~ 60℃ (optional thermostat) |
|
Working Humidity |
5% to 85% |
|
Power Dissipation |
100W MAX |
|
Box Size |
Height 1380mm * Width 255mm * Thickness 170mm |
|
Weight |
≈13kg |

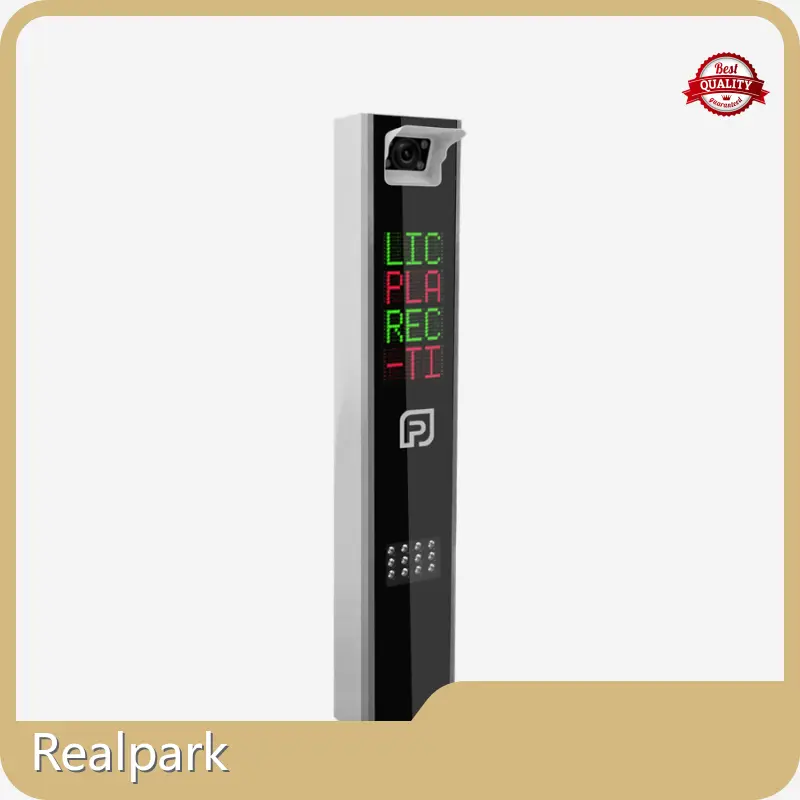

RPL-YY01 License Plate Recognition Camera Integrated Ticketless Parking Controller
RPL-YY01 is positioned as a professional integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, 160mm*320mm (P4.75 LED 2 lines) LED display, single LED display in the One. Module 64*32 dot matrix resolution. The AI license plate recognition algorithm independently developed by Realpark has increased the recognition accuracy to 99%. This product can be used in conjunction with video intercom terminals and management platforms, and supports multiple extended functions, such as front-end voice interaction, advertisement push, etc. Most importantly, it can support unattended parking applications, online payment and remote management and maintenance. RPL-YY01 can be used in industrial parks, residential areas, large commercial buildings, shopping malls, government agencies, etc.
Humanized Appearance Design Personalized and Ingenious Creation
The camera is tilted down: avoid light and rain, directly view the license plate; the recognition range is wider. Real materials, exquisite workmanship, unique ingenuity; full, exquisite, atmospheric, and good color sense; meet customers' needs for advocating practicality and beauty!
Diversified Scene Application
Adapt to different scene angle requirements: the camera recognition angle can be fine-tuned up, down, left, and right to achieve the best recognition angle, and the recognition rate is over 99%.
Strong Machine Hardware Scalability
This device can be connected to auxiliary identification cameras, information display screens, visual intercom terminals, and environmental monitoring cameras to realize more applications in parking lots, such as real-time monitoring, audio and video intercom, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management cost is lower, the application is richer, and the efficiency is higher.
Powerful Support of the Cloud Platform
The camera is tilted down: avoid light and rain, directly view the license plate; the recognition range is wider. Real materials, exquisite workmanship, unique ingenuity; full, exquisite, atmospheric, and good color sense; meet customers' needs for advocating practicality and beauty!
Support Technical Remote Debugging and Maintenance
The parking lot equipment can be connected to the operation and maintenance platform. Any abnormal events will be notified in time, and the status of the equipment can be seen at a glance.
The product supports remote upgrade, parameter configuration, log acquisition, remote monitoring and other management, which can solve the problem in the first time, and the operation and maintenance service is more efficient.
